Mastering Drivetrain Dynamics: Pinion Angle Alignment & Suspension Adjustments

Pinion angle is a critical aspect of a vehicle’s drivetrain geometry, particularly in 4WD vehicles with solid axles. It plays a crucial role in ensuring smooth power transfer, minimizing driveline vibrations, and preserving the longevity of drivetrain components. In this comprehensive guide, we’ll delve into the importance of pinion angle, how suspension lifts affect it, methods for correction, the relationship between pinion angle and caster, and what constitutes an acceptable pinion angle.

Importance of Pinion Angle

The pinion angle refers to the angle at which the differential’s pinion gear is oriented relative to the driveshaft. It directly impacts the alignment and operation of the drivetrain components, including the driveshaft, universal joints, and differential. A proper pinion angle helps maintain smooth power transfer, reduces driveline vibrations, and prevents premature wear on components.

Effects of Suspension Lift and Correction Methods for Pinion Angle

When a 4WD vehicle with a solid axle undergoes a suspension lift, the ride height is increased, altering the angles of the driveshaft and differential. This change in geometry can result in an incorrect pinion angle, leading to driveline vibrations and reduced performance. In particular, lifting a vehicle can cause the pinion angle to become misaligned, requiring correction to ensure optimal drivetrain operation.

Several methods can be employed to correct a bad pinion angle resulting from a suspension lift:

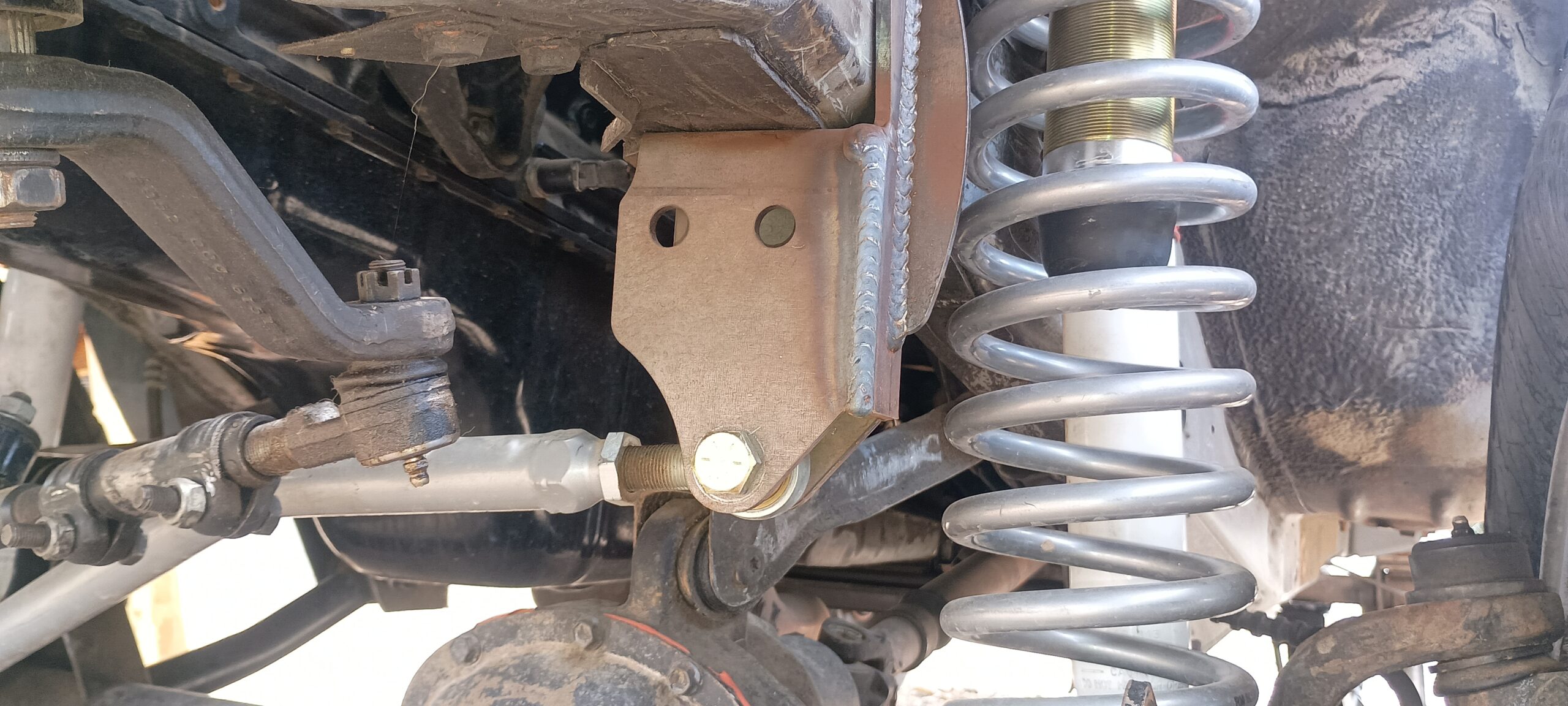

1. Adjustable Control Arms: These allow for fine-tuning of the axle housing’s position, enabling adjustments to the pinion angle.
2. Shims: Installing shims between the axle housing and leaf springs or coil springs can change the angle of the axle housing, thereby adjusting the pinion angle.

Acceptable Pinion Angle

While the specific acceptable pinion angle may vary depending on the vehicle and its intended use, a general guideline is to aim for a pinion angle that is parallel to the driveshaft when the vehicle is at its normal ride height. Typically, the pinion angle should be within a few degrees of the driveshaft angle to minimize driveline vibrations and ensure smooth operation.

Effects of Changing Pinion Angle on Caster and Correction of Caster Angle

Caster angle, which refers to the angle of the steering axis relative to vertical, can be indirectly affected by changes in the pinion angle. Altering the pinion angle may impact the position of suspension components such as control arms or links, which in turn can influence the caster angle.

To correct the caster angle, adjustments may need to be made to the suspension components, particularly those affecting the orientation of the steering knuckles. This can involve cutting, rotating, and rewelding the knuckles to achieve the desired caster angle, typically around two degrees or more for optimal steering stability and handling.
